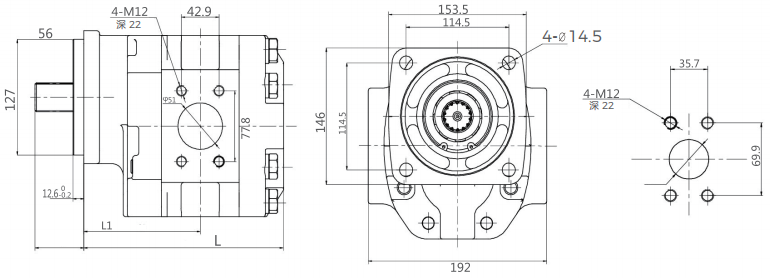

| 型号 | 排量 (ml/r) | 压力(bar) | 转速(r/min) | L(mm) | L1(mm) | |||
| 额定 | 最高 | 额定 | 最高 | 最低 | ||||
| 4PF66F161S83S20L | 66 | 210 | 250 | 1800 | 2200 | 600 | 197.3 | 121.0 |
| 4PF83F161S83S20L | 83 | 210 | 250 | 1800 | 2200 | 600 | 203.5 | 124.1 |
| 4PF91F161S83S20L | 91 | 210 | 250 | 1800 | 2200 | 600 | 207.3 | 126.0 |
| 4PF99F161S83S20L | 99 | 210 | 250 | 1800 | 2200 | 600 | 209.8 | 127.2 |
| 4PF116F161S83S20L | 116 | 210 | 250 | 1800 | 2200 | 600 | 217.3 | 130.9 |
| 4PF132F161S83S20L | 132 | 210 | 250 | 1800 | 2200 | 600 | 222.6 | 133.5 |
| 4PF145F161S83S20L | 145 | 210 | 250 | 1800 | 2200 | 600 | 227.8 | 136.1 |
| 4PF149F161S83S20L | 149 | 210 | 250 | 1800 | 2200 | 600 | 229.3 | 136.8 |
| 4PF166F161S83S20L | 166 | 210 | 250 | 1800 | 2200 | 600 | 235.3 | 139.8 |
| 4PF182F161S83S20L | 182 | 180 | 210 | 1800 | 2200 | 600 | 241.3 | 142.8 |
| 4PF199F161S83S20L | 199 | 180 | 210 | 1800 | 2200 | 600 | 248.3 | 146.3 |

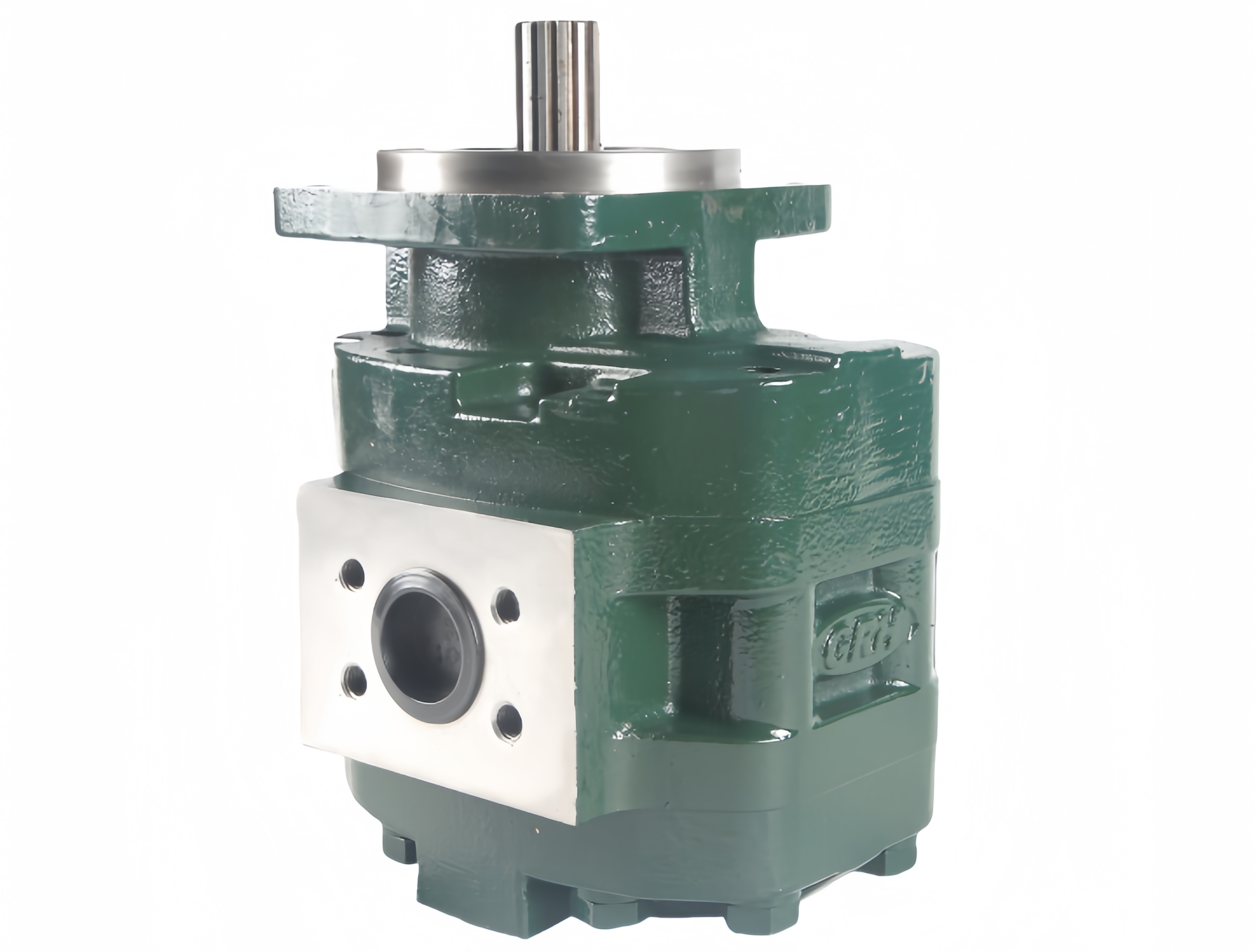

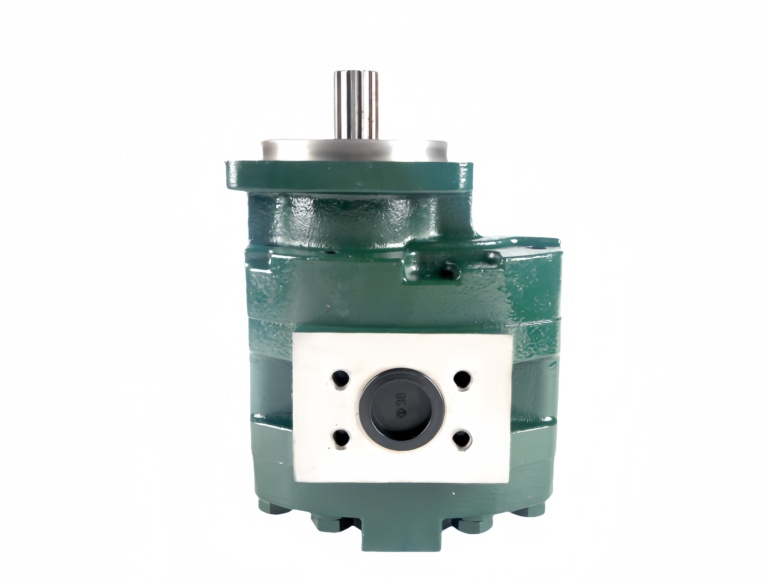

瑞胤铸铁齿轮泵广泛应用于叉车、收割机、拖拉机、高空作业平台、压路机。
